Submersible Fountain Pump
Power: 1.1kw-7.5kw
Flow: 10-250m3/h
Head: 6-121m
Material: cast iron, stainless steel 304, 316, 316L
Introduction: WhatsApp
Stainless steel submersible pumps for fountains pump body, pump wet parts and external spare parts are made by cast iron or stainless steel 304 316 or 316L, the motor is made by 100% copper wire.
The submersible fountain pump consists of two parts, a single-stage or multi-stage centrifugal pump and a three-phase asynchronous motor. It has the advantages of small size, light weight, convenient installation/running/maintenance, safe and reliable transportation, few failures, and long service life.
Application: WhatsApp

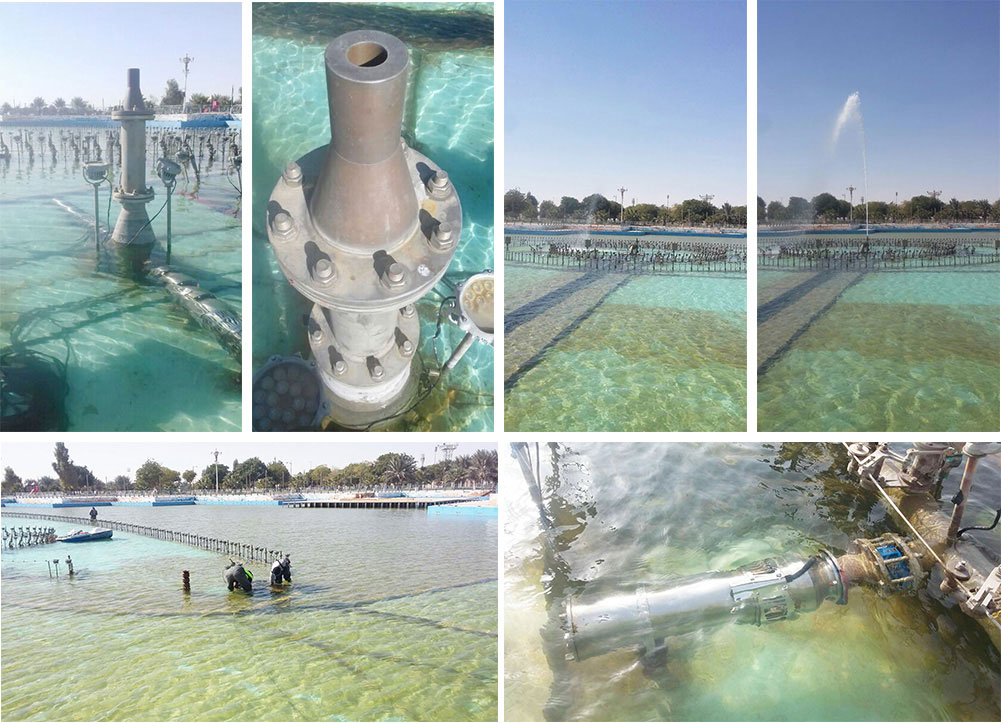

Submersible fountain pumps are mainly for square fountains, garden fountains, villa fountains, aquaculture areas, music fountain, landscape., also widely used for farm irrigation.drip irrigation, or water supply and drainage treatment.
Parameters: WhatsApp
| Model | Flow(m3/h) | Head(m) | Power(kw) | Current(A) | Discharge Dia.(mm) |
| QS(P)15-14-1.1 | 15 | 14 | 1.1 | 3.2 | 50 |
| QS(P)40-6-1.1 | 40 | 6 | 1.1 | 3.2 | 80 |
| QS(P)25-9-1.1 | 25 | 9 | 1.1 | 3.2 | 65 |
| QS(P)25-12-1.5 | 25 | 12 | 1.5 | 4.2 | 65 |
| QS(P)40-9-1.5 | 40 | 9 | 1.5 | 4.2 | 80 |
| QS(P)10-40/3-2.2 | 10 | 40 | 2.2 | 5.7 | 50 |
| QS(P)15-26-2.2 | 15 | 26 | 2.2 | 5.7 | 50 |
| QS(P)20-20-2.2 | 20 | 20 | 2.2 | 5.7 | 65 |
| QS(P)25-17-2.2 | 25 | 17 | 2.2 | 5.7 | 65 |
| QS(P)40-12-2.2 | 40 | 12 | 2.2 | 5.7 | 65 |
| QS(P)65-7-2.2 | 65 | 7 | 2.2 | 5.7 | 90 |
| QS(P)15-34/2-3 | 15 | 34 | 3 | 7 | 50 |
| QS(P)10-54/3-3 | 10 | 54 | 3 | 7 | 50 |
| QS(P)25-25-3 | 25 | 25 | 3 | 7 | 65 |
| QS(P)20-30/2-3 | 20 | 30 | 3 | 7 | 65 |
| QS(P)40-16-3 | 40 | 16 | 3 | 7 | 65 |
| QS(P)50-13-3 | 50 | 13 | 3 | 7 | 90 |
| QS(P)80-7-3 | 80 | 7 | 3 | 7 | 90 |
| QS(P)65-10-3 | 65 | 10 | 3 | 7 | 90 |
| QS(P)100-6-3 | 100 | 6 | 3 | 7 | 90 |
| QS(P)10-65/5-4 | 10 | 65 | 4 | 10.2 | 50 |
| QS(P)10-72/4-4 | 10 | 72 | 4 | 10.2 | 50 |
| QS(P)10-81/6-4 | 10 | 81 | 4 | 10.2 | 50 |
| QS(P)15-54/4-4 | 15 | 54 | 4 | 10.2 | 50 |
| QS(P)20-40/2-4 | 20 | 40 | 4 | 10.2 | 65 |
| QS(P)25-30/2-4 | 25 | 30 | 4 | 10.2 | 65 |
| QS(P)30-30/2-4 | 30 | 30 | 4 | 10.2 | 65 |
| QS(P)32-26-4 | 32 | 26 | 4 | 10.2 | 65 |
| QS(P)40-21-4 | 40 | 21 | 4 | 10.2 | 65 |
| QS(P)50-16-4 | 50 | 16 | 4 | 10.2 | 90 |
| QS(P)65-13-4 | 65 | 13 | 4 | 10.2 | 90 |
| QS(P)65-15-4 | 65 | 15 | 4 | 10.2 | 90 |
| QS(P)80-12-4 | 80 | 12 | 4 | 10.2 | 90 |
| QS(P)100-9-4 | 100 | 9 | 4 | 10.2 | 90 |
| QS(P)10-95/7-5.5 | 10 | 95 | 5.5 | 13.4 | 50 |
| QS(P)10-108/8-5.5 | 10 | 108 | 5.5 | 13.4 | 50 |
| QS(P)15-65/5-5.5 | 15 | 65 | 5.5 | 13.4 | 50 |
| QS(P)20-54/3-5.5 | 20 | 54 | 5.5 | 13.4 | 65 |
| QS(P)25-40/3-5.5 | 25 | 40 | 5.5 | 13.4 | 65 |
| QS(P)30-40/3-5.5 | 30 | 40 | 5.5 | 13.4 | 90 |
| QS(P)40-30/2-5.5 | 40 | 30 | 5.5 | 13.4 | 90 |
| QS(P)40-28-5.5 | 40 | 28 | 5.5 | 13.4 | 90 |
| QS(P)50-26-5.5 | 50 | 26 | 5.5 | 13.4 | 90 |
| QS(P)65-20-5.5 | 65 | 20 | 5.5 | 13.4 | 90 |
| QS(P)65-18-5.5 | 65 | 18 | 5.5 | 13.4 | 90 |
| QS(P)80-15-5.5 | 80 | 15 | 5.5 | 13.4 | 90 |
| QS(P)100-12-5.5 | 100 | 12 | 5.5 | 13.4 | 125 |
| QS(P)120-10-5.5 | 120 | 10 | 5.5 | 13.4 | 125 |
| QS(P)220-5-5.5 | 220 | 5 | 5.5 | 13.4 | 150 |
| QS(P)10-121/9-7.5 | 10 | 121 | 7.5 | 18.6 | 50 |
| QS(P)15-80/6-7.5 | 15 | 80 | 7.5 | 18.6 | 50 |
| QS(P)20-65/5-7.5 | 20 | 65 | 7.5 | 18.6 | 65 |
| QS(P)20-75/4-7.5 | 20 | 75 | 7.5 | 18.6 | 65 |
| QS(P)25-65/5-7.5 | 25 | 65 | 7.5 | 18.6 | 65 |
| QS(P)30-50/3-7.5 | 30 | 50 | 7.5 | 18.6 | 65 |
| QS(P)30-54/3-7.5 | 30 | 54 | 7.5 | 18.6 | 65 |
| QS(P)32-48/4-7.5 | 32 | 48 | 7.5 | 18.6 | 65 |
| QS(P)40-40/2-7.5 | 40 | 40 | 7.5 | 18.6 | 90 |
| QS(P)50-30/2-7.5 | 50 | 36 | 7.5 | 18.6 | 90 |
| QS(P)50-36/3-7.5 | 50 | 36 | 7.5 | 18.6 | 90 |
| QS(P)65-25-7.5 | 65 | 25 | 7.5 | 18.6 | 90 |
| QS(P)80-22/2-7.5 | 80 | 22 | 7.5 | 18.6 | 90 |
| QS(P)100-15-7.5 | 100 | 15 | 7.5 | 18.6 | 125 |
| QS(P)100-17-7.5 | 100 | 17 | 7.5 | 18.6 | 125 |
| QS(P)250-8-7.5 | 250 | 8 | 7.5 | 18.6 | 150 |
