Bottom Suction Sewage Pump
Power: 3kw-110kw (4hp-150hp)
Flow: 12.5-600m3/h
Head: 30-200m
Material: cast iron and stainless steel
Introduction: WhatsApp
Bottom suction sewage pumps are suitable for pumping sewage and sludge in any severe environment. They are bottom suction type, which can drain water on working ground completely. It uses three-phase asynchronous electric motor. It takes small floor space, convenient to install, with a long service life.
Application: WhatsApp

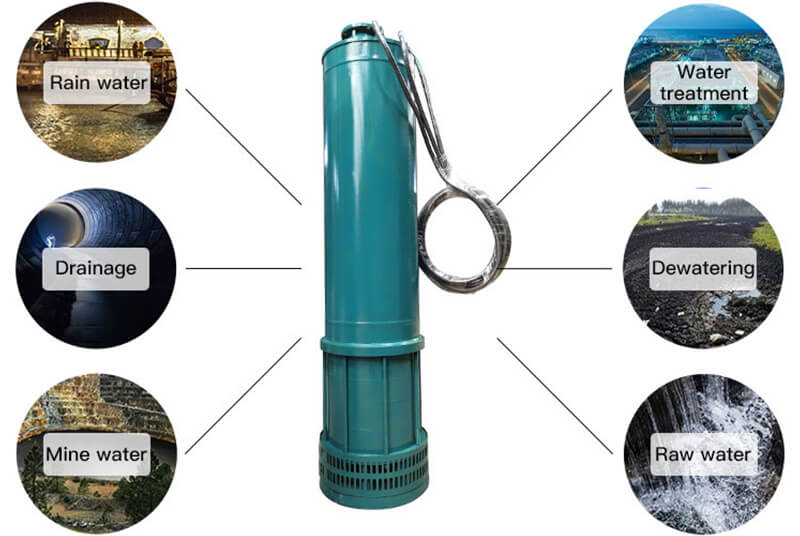

Submersible bottom suction pump is mainly used in mining or river. High head and multistage.
Parameters: WhatsApp
| Model | Flow (m³/h) | Lift (m) | Power (kw) | Power (hp) |
| WQX12.5-40 | 12.5 | 40 | 3 | 4 |
| WQX12.5-100 | 12.5 | 100 | 7.5 | 10 |
| WQX12.5-160 | 12.5 | 160 | 13 | 18 |
| WQX12.5-180 | 12.5 | 180 | 15 | 20 |
| WQX12.5-200 | 12.5 | 200 | 18.5 | 25 |
| WQX15-50 | 15 | 50 | 4 | 4 |
| WQX15-70 | 15 | 70 | 5.5 | 7 |
| WQX15-110 | 15 | 110 | 9.2 | 13 |
| WQX15-130 | 15 | 130 | 11 | 15 |
| WQX15-170 | 15 | 170 | 15 | 20 |
| WQX15-190 | 15 | 190 | 18.5 | 25 |
| WQX20-80 | 20 | 80 | 7.5 | 10 |
| WQX20-120 | 20 | 120 | 15 | 20 |
| WQX20-170 | 20 | 170 | 18.5 | 25 |
| WQX25-17 | 25 | 17 | 3 | 4 |
| WQX30-60 | 30 | 60 | 11 | 15 |
| WQX30-150 | 30 | 150 | 22 | 30 |
| WQX40-60 | 40 | 60 | 13 | 18 |
| WQX40-80 | 40 | 80 | 15 | 20 |
| WQX50-30 | 50 | 30 | 9.2 | 13 |
| WQX50-100 | 50 | 100 | 30 | 40 |
| WQX50-120 | 50 | 120 | 37 | 50 |
| WQX70-40 | 70 | 40 | 13 | 18 |
| WQX80-40 | 80 | 40 | 15 | 20 |
| WQX80-60 | 80 | 60 | 25 | 35 |
| WQX80-130 | 80 | 130 | 55 | 75 |
| WQX100-30 | 100 | 30 | 15 | 20 |
| WQX100-60 | 100 | 60 | 30 | 40 |
| WQX100-80 | 100 | 80 | 45 | 60 |
| WQX100-100 | 100 | 100 | 55 | 75 |
| WQX100-120 | 100 | 120 | 63 | 85 |
