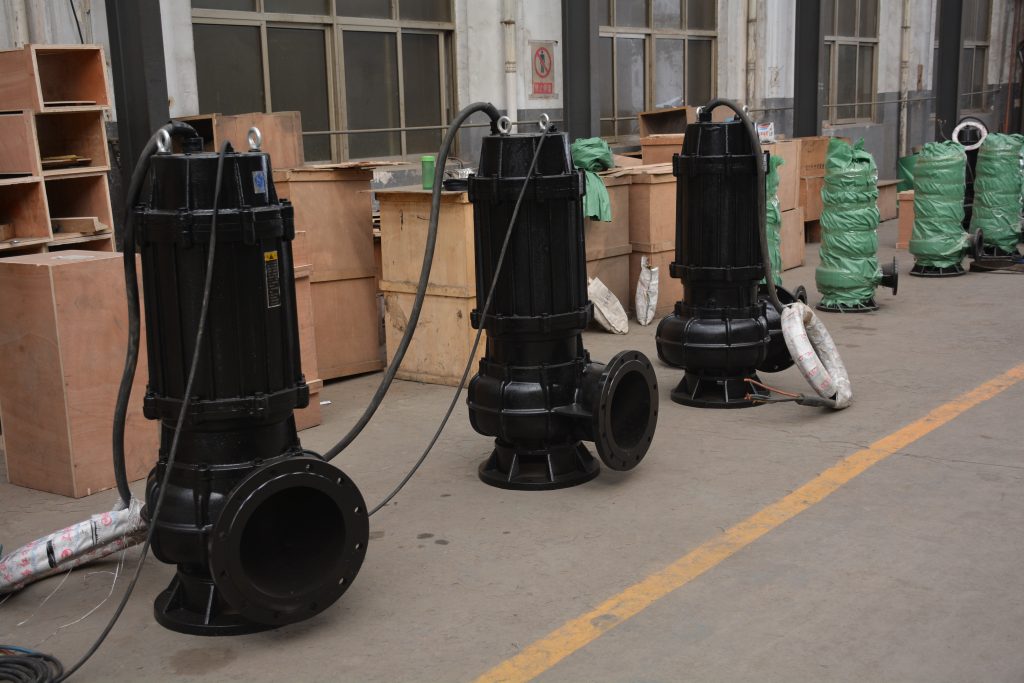

| Product name: | Submersible sewage pump |
| Product No: | 150WQ200-28-30KW |
| Technical: | |
| Required flow: | 200 m3/hr (870GPM) |
| Head: | 28m (93 feet) |
| Required flow: | 1400 GPM @ 65ft head |
| Starting Current: | 226A |
| Enclosure: | IEC-34-5 IP68 |
| Insualation Class: | IEC85H |
| Main power supply: | 440v,60hz,3 phase |
| Type of impeller: | Closed |
| Impellor stages: | single |
| shaft seal: | Mechanical seal |
| Curve tolerance: | ISO9906:2012 3B |
| Cooling Type: | OIL COOLING |
| Main Materials: | |
| Pump housing: | Cast iron |
| Impeller: | Cast iron |
| shaft: | Stainless steel |
| Bearing | Cast iron |
| Motor: | Cast iron |
| Installation: | |
| Location: | Outdoor |
| Flange standard: | GB |
| Pump inlet: | Open |
| Discharge diameter: | DN 150mm |
| Pressure stage: | PN 16 |
| Maximum submerged depth: | 20 m |
| Inst dry/wet: | SUBMERGED |
| Installation: | VERTICAL |
| Liquid: | |
| Pumped liquid: | sewage water |
| Maximum liquid temperature: | 40℃ |
| Liquid temp: | 38℃ |
| Relative density: | 1.157 |
| viscosity: | 3-6pas |
| corrosive: | no |
| Solid content: | ≤20% |
| Max solid passage dia. | 2″ |
| Electrical data: | |
| Number of poles: | 4 |
| Rated power : | 30KW / 40HP |
| Mains frequency: | 60 Hz |
| Rated voltage: | 440 V |
| Rated speed: | 1750 rpm |
| Insulation class | H |
| IP class: | IP68 |
| Voltage tolerance: | =10/-10% |
| Start. method: | soft start |
| Max starts per. hour: | 10 |
| Rated current: | 51.8A |
| Cos phi – power factor: | 0.85 |
| Motor efficiency at full load: | 85.50% |
| Cable Length: | 20m |
Click the link below to download the PDF：
150WQ200-28-30KW performance curve
150WQ200-28-30KW sewage pump overall dimensions drawing
150WQ200-28-30KW Technical data sheet
